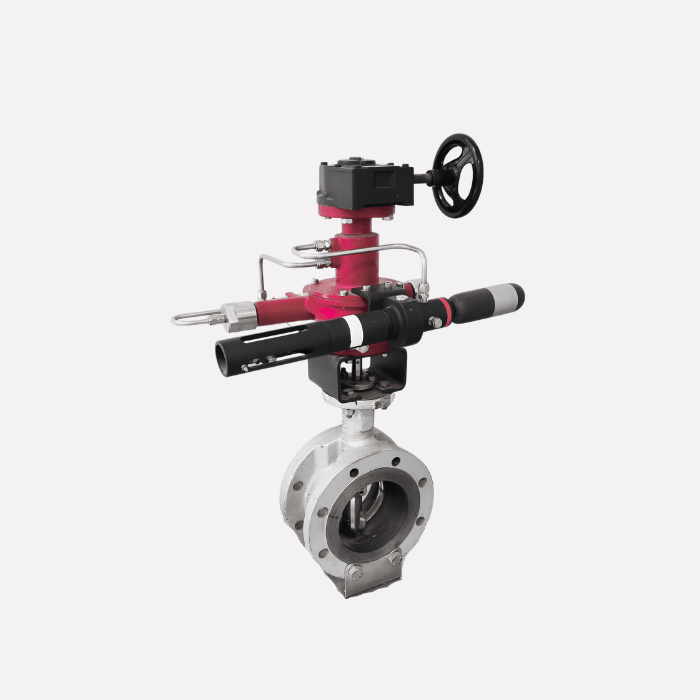

Emergency actuator for tapered valve

Pyroalliance designs and manufactures a wide range of safety pyrotechnic mechanisms & add-ons for various types of taps and turn valves.

Ultra-high-speed pyrotechnic actuators are used as an ultimate mean of safety when fast operation is needed (less than 5ms) to provide an instant flow path opening or closure. They are mounted on top or inserted in-between the traditional manoeuvring system and the valve body. Manoeuvre can be manually, electrically, thermally, pneumatically or hydraulically driven.

Pyrotechnic assemblies provide a safe (and possibly autonomous) redundancy. The pressurized gas release will provide more torque in order to actuate larger ¼ turn valves formats.

Pyroalliance also produces a variety of electrically or manually operated replacement cartridges.

Emergency actuator for tapered valve at a glance

Benefits of pyrotechnics

  • Extreme reliability (avoiding inadvertent actuations…and factory shut downs)
  • Fast actuation time
  • High pressure compliance
  • Low power actuation (can run on battery)
  • Field resettable
  • No external effects
  • Possibly autonomous
  • No maintenance, 10 years standby mode

Industry applications

  • Human life protection
  • Fire suppression
  • Industrial site protection
  • Oil and Gas pipe line Safety
  • Depressurization of chemical reactor
  • Nuclear Naval safety boilers
  • Deep underwater installations

Key figures of pyrotechnics performance

TECHNICAL SPECIFICATIONS OUR RANGE OF PERFORMANCE
INNER PIPE DIAMETER: Up to 24 Inches
OPERATING PRESSURE: 40 to 280+ bars
AUTHORIZED FLUIDS: Liquid or gas (upstream or downstream side)
WEIGHT: Configuration dependent
OPERATING TEMPERATURE: Configuration dependent (direct explosive temperature to remain below 90°C)
OPERATING LIFETIME: 3 years
