Multi-Applications Detonating Cords
Pyroalliance designs and manufactures a complete family of detonating cords dedicated to transmit a pyrotechnic signal, induce an ultra-short time delay or used for structure weakening / breakage.
Multi-Applications Detonating Cords, manufactured under Pyroalliance design authority
Those can be made of different metallic materials and various explosive types depending on the application requirements.
Pyroalliance has the ability to propose detonating cords with specific plastic coating and/or armoured braiding.
More generally, Pyroalliance delivers complete pyrotechnic chains adapted to its customers’ needs.
They are designed and manufactured under Pyroalliance design authority.
Multi-Applications Detonating Cords at a glance
Benefits of pyrotechnics
- Many references of detonating cords can be made available that will be selected on the basis of the targeted application and their associated environmental conditions.
- Geometrical section can vary in diameter from ~1.5mm to ~5mm for detonating cords with traditional circular section. Flat section is also possible for specific applications.
- Depending again on the considered application, detonating cords can be delivered in different conditioning sets from simple straight strands of few centimetres to ~300 meters long rolls.
- The metallic envelope can be made of lead or aluminium and the explosive core is most generally made of RDX, HMX or HNS.
- For transmission functions, detonating cords are covered by a specific plastic coating and/or armoured braiding to form a transmission line.
Defence applications
- Detonating transfer lines
- Pyrotechnic delays for military warheads

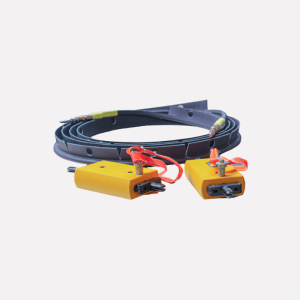

- Canopy severance
- Frangible joint assembly
- Structure weakening or breakage
Key figures of pyrotechnics performance
| TECHNICAL SPECIFICATIONS | NOTRE GAMME DE PERFORMANCE |
| DETONATING VELOCITY: | ~7000 m/s |
| EXTERNAL DIAMETER: | ~Ø 1.5 à ~Ø 5mm |
| IGNITION MODE: | Detonation shock |
| OPERATING TEMPERATURE: | Down to ~ -80°C Up to ~ +100°C |
| LINEAR LOAD: | ~0.5g/m up to ~10g/m, depending module |
| RELIABILITY: | Range of 1-10-6 |
| BENDING RADIUS: | Down to ~3mm with a ~Ø 1.5 transmission cord |
