Pyrotechnic Hold And Release Mechanism (HRM)
Space
New space

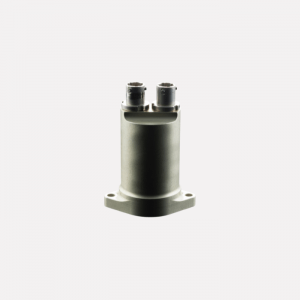

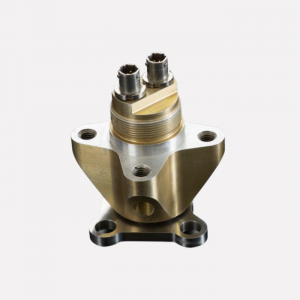

Separation Nuts SEP&FLY®
The SEP&FLY® range is dedicated to the Hold and Release function enabled by Separation Nuts for releasing the payloads from dispensers or payload adapters. Our separation nuts have an historical record of a 100% proven reliability. Our ability to produce at very high production rate (>200u/mth) has also been proven, and our product line is made of several available modules making sure that each need finds a solution with the appropriate sizing.
Key figures
| TECHNICAL SPECIFICATIONS | OUR RANGE OF PERFORMANCE |
| OPERATION TIME (Typical values): | < 5 ms |
| OPERATING BOLT TENSION: | Up to 200kN |
| BOLT DIMENSIONS: | From M6 to M20 |
| WEIGHT WITHOUT INITIATORS: | depending on module and options (starting from 120g) |
| DIMENSIONS: | depending on module and options |
| OPERATING TEMPERATURE: | -60°C to +80°C |
| INITIATORS (if relevant): | 2 NSI* - *NASA Standard Initiators |
Operating mode
