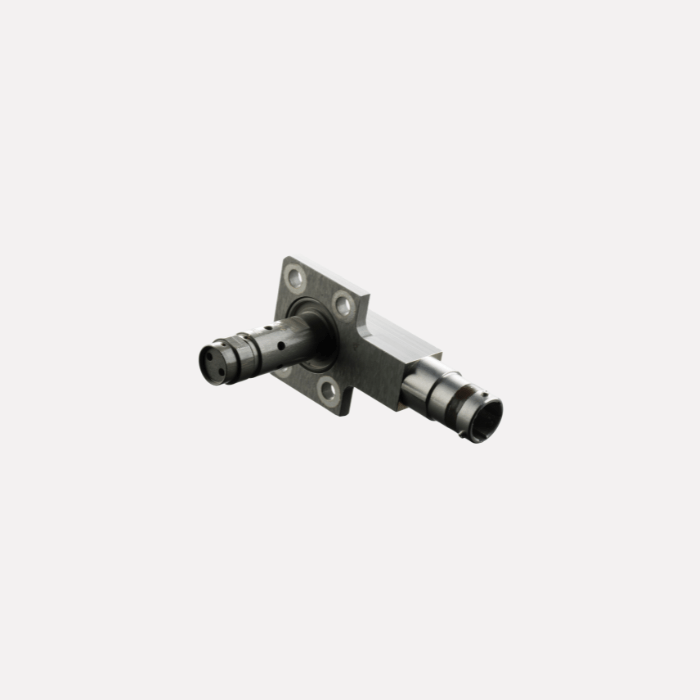

Pyroalliance designs and manufactures different kinds of hermetic pyrotechnic valves used in the complex fuel management system of missile turbojet engines:

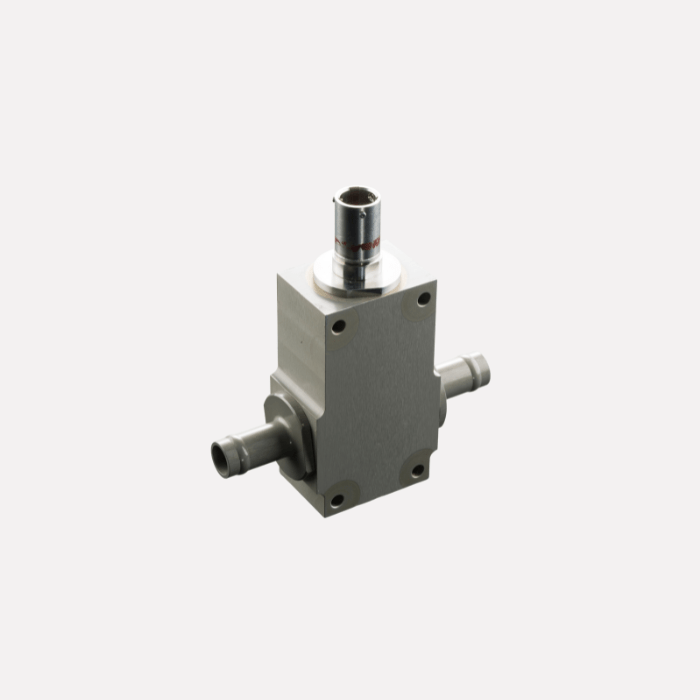

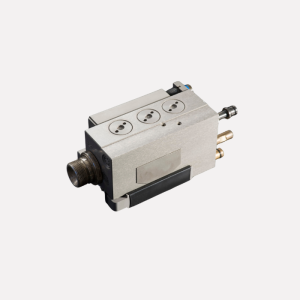

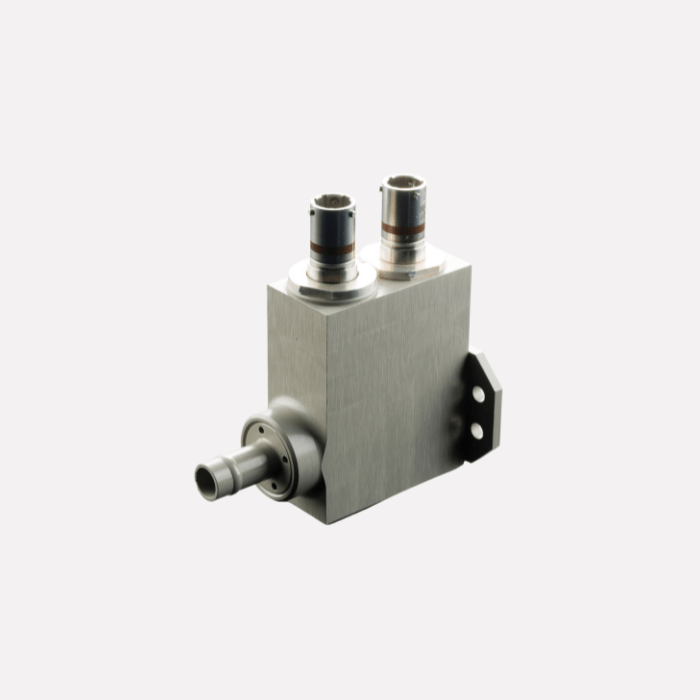

Tank Vent valve, One-way fuel valve (Normally Closed), Two-ways fuel valve (Normally Closed / Normally Open).
3
More generally, Pyroalliance delivers complete pyrotechnic chains adapted to its customers’ needs. They are designed and manufactured under Pyroalliance design authority.
Valve at a glance
Benefits of pyrotechnics
- Perfect hermeticity of the valve as opposed to nonpyro valves (the mechanical barrier is ensured by the continuity of the material before getting breached by the cutter)
- While and even after functioning the valve retains all gas generated from the pyrotechnic components and has no external outgazing
- The functioning time of such equipment is extremely short
Defence applications
- Fuel system of missile turbojet engines (cruise missiles, anti-ship missiles, etc.)
Key figures of pyrotechnics performance
| TECHNICAL SPECIFICATIONS | OUR RANGE OF PERFORMANCE |
| FUNCTIONING TIME: | Below 10 to 15ms |
| RELIABILITY: | Better than 0,9999 @90% CL |
| SIZE, WEIGHT AND POWER (SWaP): | SWaP adapted to the mission |
| IINITIATION: | 1A/1W Standard STANAG |
| FIRING CURRENT: | 5A – few ms |
| NON FIRING CURRENT: | 1A / 1W / 5min at 100°C |
| TEMPERATURES: | Adapted to typical airborne military climatic environment |
| LIFE TIME: | Adapted to the mission and life profile |
| PYRO CLASS: | Out of class 1 certificate available |
