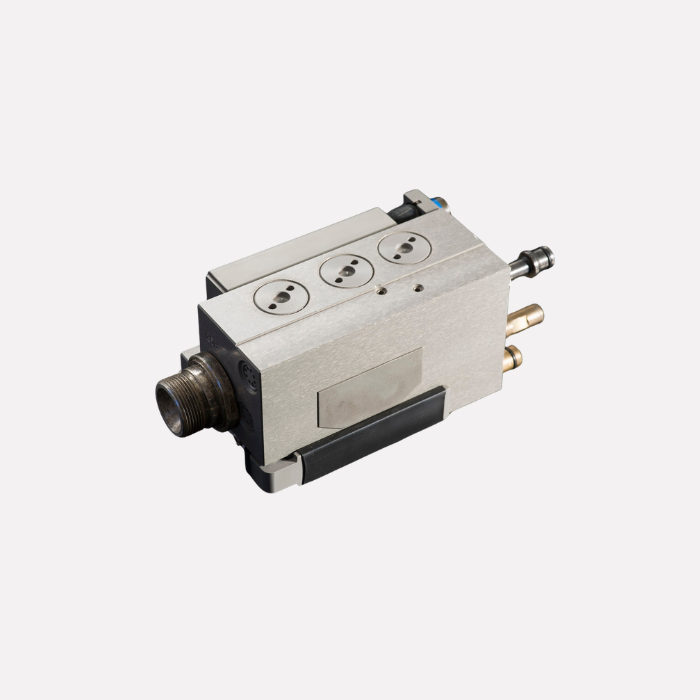

High Pressure Multiway Valve
Pyroalliance designs and manufactures high pressure multiway valves for missile applications.
These complex hight pressure multiway valves, constituted of several ways, operate as a pyrotechnically triggered pneumatic distributor allowing the supply of pneumatic pressure to each of its ways.
The hight pressure multiway valves are designed to perform a tailored sequence of actions among which circuit opening, circuit closing, mechanical actuation…
Based on onboard available pneumatic pressure, a series of pyrotechnic orders successively triggers the required functions, thus combining several pyro-mechanisms in one single equipment.
More generally, Pyroalliance delivers complete pyrotechnic chains adapted to its customers’ needs. They are designed and manufactured under Pyroalliance’s design authority.
Pyrotechnic Complex Valve at a glance
Benefits of pyrotechnics
- Several functions on a single valve,
- Sealing before and after operation,
- Very quick functioning time,
- Low energy for ignition of initiator,
- Energy stored onboard (energetic material).
Defence applications
- Various complex missile actuation sequences
Key figures of pyrotechnics performance
| TECHNICAL SPECIFICATIONS | OUR RANGE OF PERFORMANCE |
| Operating time: | < 10ms for each way |
| Firing current: | 5A – 10 ms |
| Non fire current: | 1A / 1W - 5 min @ 100°C |
| Pressure: | Up to 500 bars |
| Internal diameter: | > from 1 mm to 10 mm |
| Size, Weight and Power (SWaP): | Adapted to the mission and life profile |
| Operating temperature: | Typically [-55°C;+85°C] adapted to airborne military environment |
| Storage life time: | 3 years |
| Operational life time: | 10 to 15 years |
| Reliability: | ~1-1.10-6 |
