Valve with pyrotechnically triggered opening
Industry

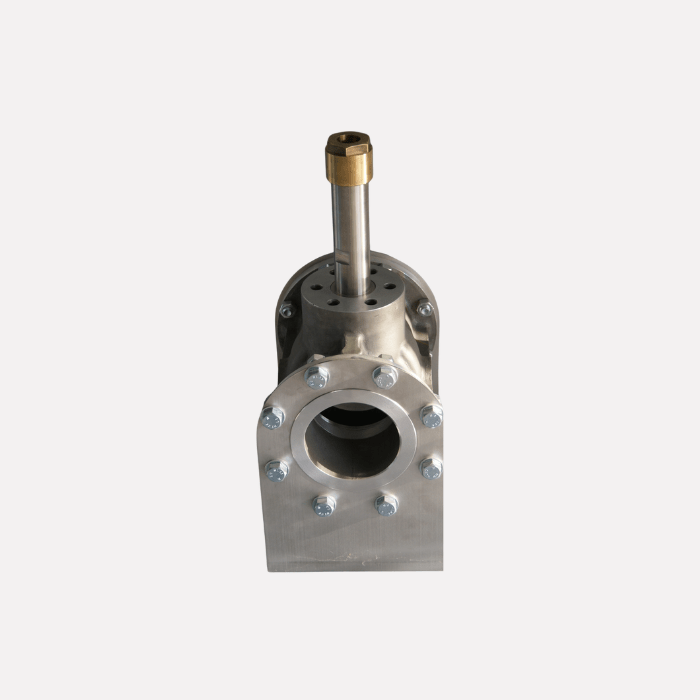

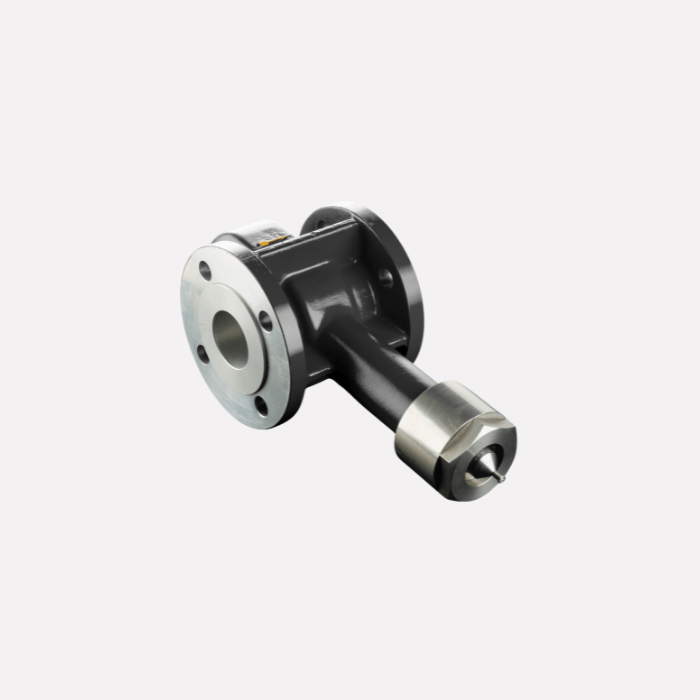

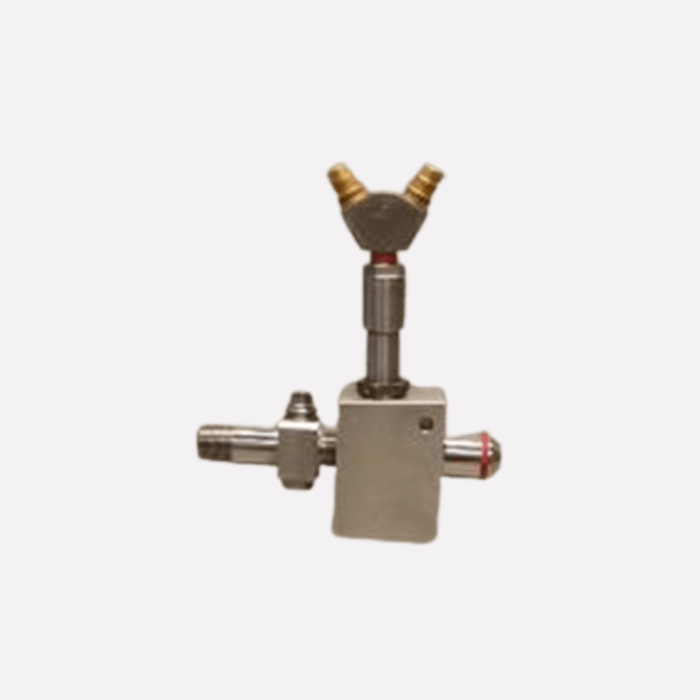

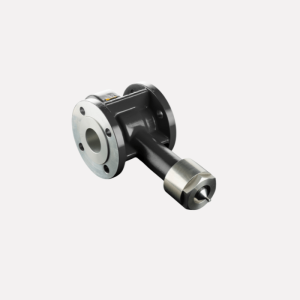

Industrial valve
Pyroalliance designs and produce a variety of Emergency Safety Devices. They are designed as the last resort when unexpected events happen and human intervention/access is limited.
The pyrotechnic based product, by nature, offers a very high level of reliability and unmatched performances in a small footprint. They can remain in “stand by” mode for years before solicitation and react as good as the day it was installed.
3
The present set of valves, completely hermetic before operation, allows opening or closing a fluid or gas flow in a pipe. The valve is reusable after replacement of consumable parts (frangible tubing, cartridge, piston…).
All our products are designed and manufactured under Pyroalliance design authority. For ATEX use, please contact Pyroalliance for specific references.
Industrial valve at a glance
Benefits of pyrotechnics
- Hermetically closed before operation
- Actuation time below 5 ms
- Low activation current
- No external effects
- Can operate on battery (even remotely)
- Reusable with its reconditioning kit
- Does not require any maintenance during operational life time
Industry applications
- Oil and Gas infrastructures
- Emergency fire protection systems
- Nuclear reactor cooling systems opening
- Chemical chambers depressurization
Key figures of pyrotechnics performance
| TECHNICAL SPECIFICATIONS | OUR RANGE OF PERFORMANCE |
| INNER PIPE DIAMETER: | 50, 100 or 150mm |
| AUTHORIZED FLUIDS: | Liquid or gas (No liquid downstream!!) |
| SERVICE PRESSURE: | 40 bars upstream, 10 bars downstream (gas) |
| OPERATING TIME: | ≤ 5 ms |
| RELIABILITY: | Very high |
| REDUNDANCY: | One to two cartridges with independent circuits |
| WEIGHT: | From 3.5 to 85kg (Depends on the size and materials: stainless steel, cast-iron, aluminium, etc.) |
