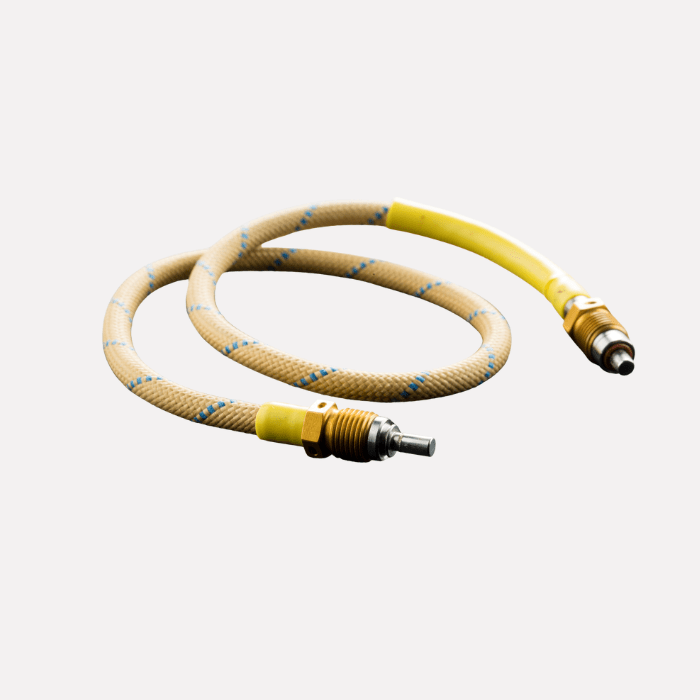

Mild Detonating Cord
Pyroalliance designs and manufactures several types of Mild Detonating Cord with various diameters, sizes, shape connections or cladding.
Mild Detonating Cord is used to transmit detonating signals. Such signal can be received from another detonating line (via a manifold), a detonator or a slapper. It is transmitted to a terminal function such as a Through Bulkhead Initiator (TBI) for solid rocket ignition or a cutting cord (for separation or flight termination functions).
More generally, Pyroalliance delivers complete pyrotechnic chains adapted to its customers’ needs. They are designed and manufactured under Pyroalliance design authority.
Mild Detonating Cord at a glance
Benefits of pyrotechnics
- Flexible and adjustable length for an easy integration
- No leak or external effect
- Mechanical system integrity
- Small Size and Weight
- High reliability level (100% X-Ray control)
- Lead free
Defence applications
- Pyrotechnic order transmission for missile booster ignition
- Pyrotechnic order transmission for missile flight termination
Key figures of pyrotechnics performance
| SPECIFICATIONS TECHNIQUES | NOTRE GAMME DE PERFORMANCE |
| SIZE: | Length from several centimeters up to several meters, Diameter the line between 6 and 14 mm, M8-M13 mechanical connection standard adaptable according to the interface geometry |
| MASS: | Range of 40g/m |
| IGNITION/END RELAY: | HNS |
| IGNITION SYSTEM: | Detonator, Slapper or Transfer line |
| RELIABILITY: | 0.999859 @90% CL |
| TEMPERATURES: | Adapted to typical airborne military climatic environment |
| ELECTROSTATIC VOLTAGE: | 25kV |
| CAPACITOR: | 500 pF |
| DISCHARGE RESISTOR: | 500Ω and 5000Ω |
| LIFE TIME: | Adapted to the mission and life profile |
| STANDARD: | STANAG 4370, S-CAT n°17500 |
