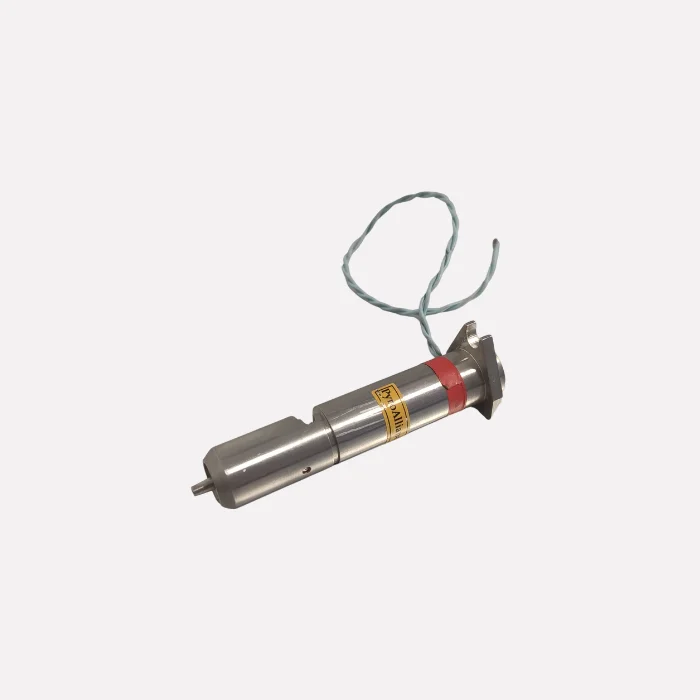

Pin Puller / Pusher
Pyroalliance designs and manufactures pyrotechnic Pin Pullers and Pin Pushers. Those are dedicated to maintain the holding position of a mechanism aiming to be deployed or ejected after the pin is activated.
In most cases it will prevent the linear or rotational motion of an object.
For example helicopter rocket canisters use Pin Pullers as an arming signal confirmation and allow the rocket to be operated once removed. Pin Pushers, at the opposite, will create a movement to push or break another mechanical piece such as missile inlet cover or gas bottle cap for fire suppression.
The overall dimensions as well as piston strokes are adjusted depending on the application.
More generally, Pyroalliance delivers complete pyrotechnic chains adapted to its customers’ needs. They are designed and manufactured under Pyroalliance design authority.
Pin Puller / Pusher at a glance
Benefits of pyrotechnics
- Compact with high energetic density
- High speed operation: < 5ms (Essential to synchronize functions)
- High reliability level ≥ 0.9998 (@90% CL)
- Hermeticity: contained effects, no fragments or flame
Defence applications
- Missile or rocket launch tube
- Protection/cover removal for: Air intake, Optical instrument
- Fins and wings release
- Fuse arming
- Emergency door release
Key figures of pyrotechnics performance
| TECHNICAL SPECIFICATIONS | OUR RANGE OF PERFORMANCE |
| OPERATING TIME: | 5ms to 10ms (depending on the model) |
| TEMPERATURE: | Adapted to typical airborne military climatic environment |
| SIZE: | Length : ≤ 40mm, Diameter : ≤ 10mm |
| RELIABILITY: | ≥ 0.9998 @90% CL |
| LIFE TIME: | Adapted to the mission and life profile |
| FIRING CURRENT: | ≥ 1A - 10ms |
| NON FIRING CURRENT: | 1A / 1W / 5min @ ambient temperature |
| CONNECTOR: | Various termination available |
