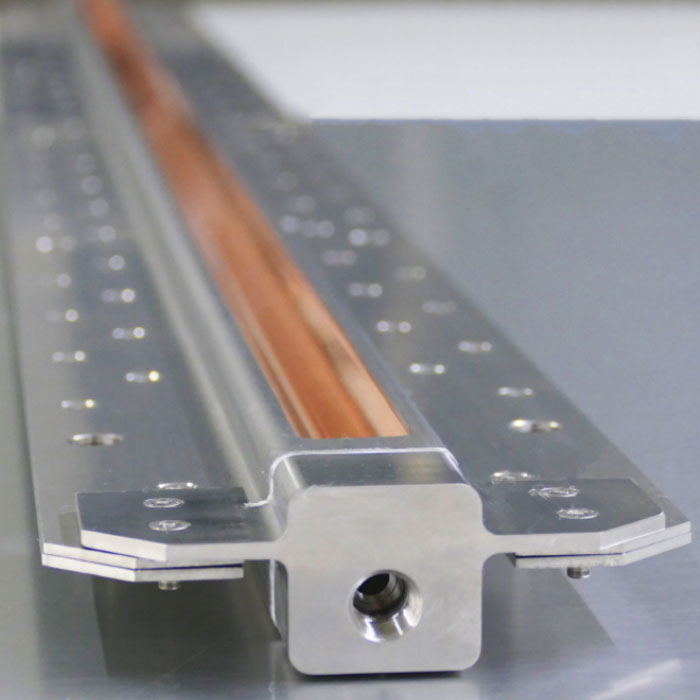

Pyrotechnic Linear Shaped Charge Device (LSCD)
Pyroalliance designs and manufactures specific Linear Shaped Charge Devices for different applications. These products, machined from a linear profile with an initiation port at each end, are dedicated to terminate a mission, sink used motor cases or passivate propellant tanks. With a new generation of copper cutting cord incorporated into the charge holder, Pyroalliance offers lead free solutions compliant with the latest market needs. Those LSCDs, combined with other Pyroalliance’s products, are part of Flight Termination pyrochains. They are embarked on Ariane 6 and Vega-C. More generally, Pyroalliance delivers complete pyrotechnic chains adapted to its customers’ needs. They are designed and manufactured under Pyroalliance design authority.
LSCD at a glance
Benefits of pyrotechnics
- Very high reliability level
- Fast execution
- Increased performance in a small footprint
- Easy integration (precise mechanical interfaces and mounts)
- No preventive maintenance needed
- Lead free
- REACH-compliant
- Design compatible with RCC 319 Commonality Standard
Space applications
- Destruction / Flight Termination
- Motor case sinking
Key figures of pyrotechnic performance
| TECHNICAL SPECIFICATIONS | OUR RANGE OF PERFORMANCE |
| ESTIMATED CUTTING PERFORMANCES: | Up to 22 mm in steel and 35 mm in carbon composite |
| MAIN DIMENSIONS: | 0.60m to 2m length - Up to 28mm diedric linear shape charge |
| DETONATION VELOCITY: | > 7700 m/s |
| LINEAR CHARGE (RDX): | 25-380g/m depending on cord type |
| OPERATING TEMPERATURE: | Down to -80°C - Up to + 100°C |

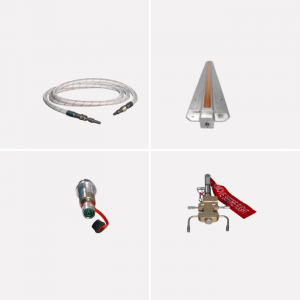

The neutralisation system
See more

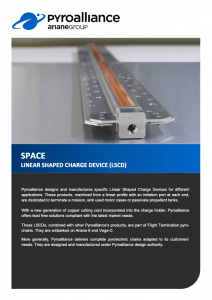

Download
