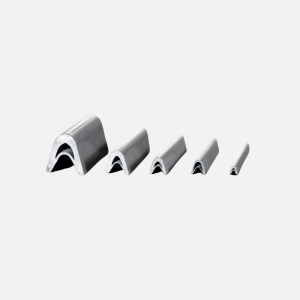

Bendable Linear Shaped Charge (BLSC)
Defence
Aircraft
Actuating
Missiles
Actuating

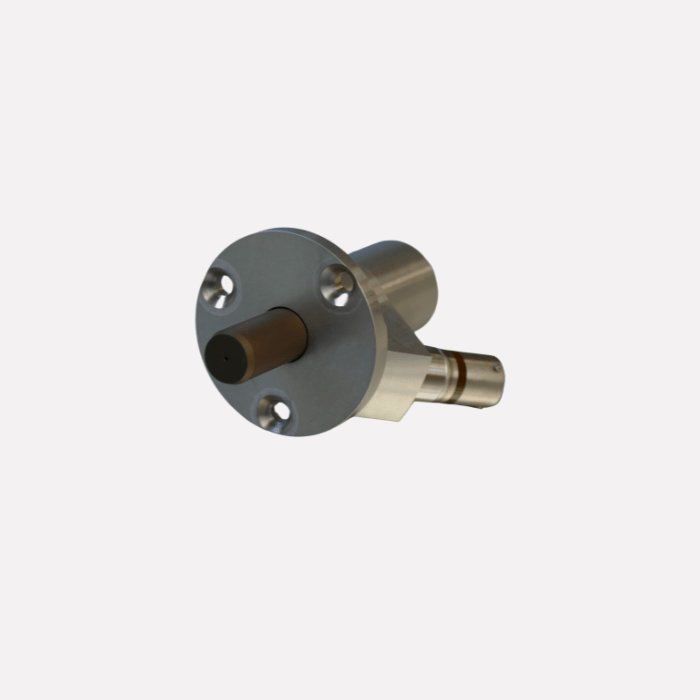

Retractor
Pyroalliance designs and manufactures pyrotechnic pin retractors dedicated to secure the holding position of a mechanism aiming to be deployed or ejected after the pin is retracted.
This is often the case on missiles, for flight surface actuators, wings or air intake cover. The overall dimensions as well as piston travel ranges are adjusted depending on the application.
The pin retractors are triggered at various moments during the full sequence of a mission.
More generally, Pyroalliance delivers complete pyrotechnic chains adapted to its customers’ needs. They are designed and manufactured under Pyroalliance design authority.
Retractor at a glance
Benefits of pyrotechnics
- High speed of operation < 5ms (Essential feature to synchronize functions)
- High reliability level > 0.9998 @90% CL
- Identification of hazards 1.4S
- Hermeticity: contained effects, no fragments or flames
Defence applications
- Missile or rocket launch tube
- Fins and wings release
- Protection/cover removal for Air intake or Optical instrument
- Emergency door release
Key figures of pyrotechnics performance
| TECHNICAL SPECIFICATIONS | OUR RANGE OF PERFORMANCE |
| OPERATING TIME: | < 5ms typical (< 10ms max) |
| TEMPERATURE: | Adapted to typical airborne military climatic environment |
| SIZE: | Height : 80-90mm, Length : 70-80mm, Width : 50-60mm |
| RELIABILITY: | ≥ 0.9998 @90% CL |
| LIFE TIME: | Adapted to the mission and life profile |
| FIRING CURRENT: | 5A - 10ms |
| NON FIRING CURRENT: | 1A / 1W / 5min @100°C |
| WEIGHT: | 200g-250g |
| PISTON SPECIFICITY: | Ø TBD by customer |
